PG1265NL
PG1265NL

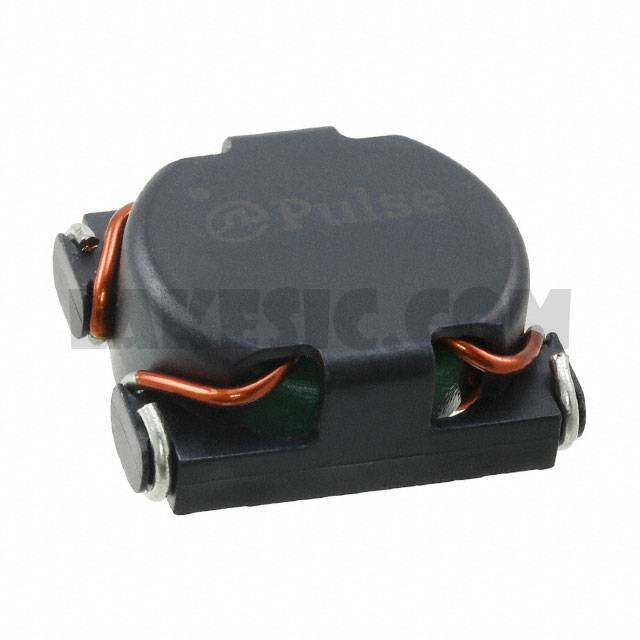

Part Number PG1265NL Description COMMON MODE CHOKE 20A 2LN SMD Package / Case Horizontal, 4 PC PadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2 Line Common Mode Choke Surface Mount 20A DCR 4.1mOhm
To learn about the specification of PG1265NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PG1265NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PG1265NL.
We are offering PG1265NL for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
PG1265NL - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet PAyyyyNL Datasheet Standard Package 20 Manufacturer Pulse Electronics Power Series - Packaging Tube Part Status Active Filter Type - Number of Lines 2 Current Rating (Max) 20A DC Resistance (DCR) (Max) 4.1mOhm Voltage Rating - DC - Voltage Rating - AC - Operating Temperature -40°C ~ 130°C Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 1.220" L x 1.000" W (30.99mm x 25.40mm) Height (Max) 0.500" (12.70mm) Package / Case Horizontal, 4 PC Pad
