PH1090-75L
PH1090-75L

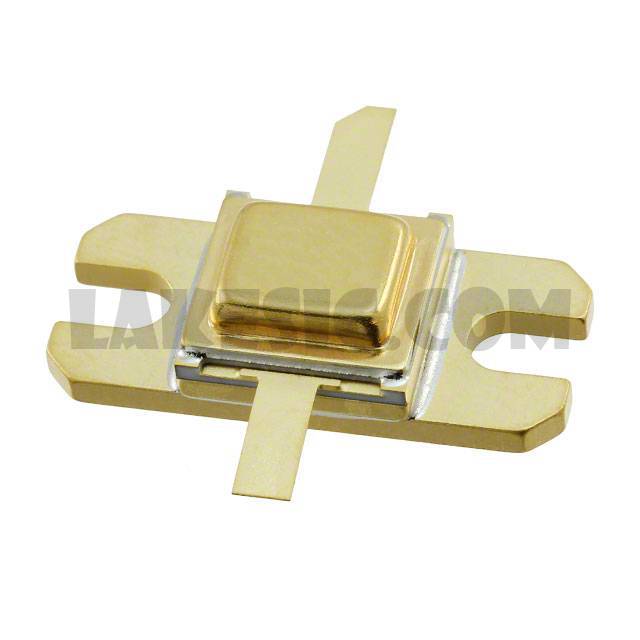

Part Number PH1090-75L
Description RF TRANS NPN 70V
Package / Case -
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description RF Transistor NPN 70V 6A 75W Chassis Mount
To learn about the specification of PH1090-75L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PH1090-75L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PH1090-75L.
We are offering PH1090-75L for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
PH1090-75L - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet PH1090-75L
Standard Package 20
Manufacturer M/A-Com Technology Solutions
Series -
Packaging Tray
Part Status Active
Transistor Type NPN
Voltage - Collector Emitter Breakdown (Max) 70V
Frequency - Transition -
Noise Figure (dB Typ @ f) -
Gain 10.70dB ~ 10.81dB
Power - Max 75W
DC Current Gain (hFE) (Min) @ Ic, Vce -
Current - Collector (Ic) (Max) 6A
Operating Temperature 200°C (TJ)
Mounting Type Chassis Mount
Package / Case -
Supplier Device Package -
