Categories	Capacitors / Film Capacitors
Datasheet	PHE840MA6100MA04R17 Spec
Standard Package	600
Manufacturer	KEMET
Series	PHE840M
Packaging	Bulk
Part Status	Active
Capacitance	0.1µF
Tolerance	±20%
Voltage Rating - AC	275V
Voltage Rating - DC	760V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.512" L x 0.236" W (13.00mm x 6.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Termination	PC Pins
Lead Spacing	0.394" (10.00mm)
Applications	EMI, RFI Suppression
Ratings	X2
Features	-

PHE840MD6330KD17R06L2	KEMET, 0.33µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MD6390MD14R06L2	KEMET, 0.39µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MK5150MK01R17	KEMET, 0.015µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MB6150MB10R17	KEMET, 0.15µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MB6150KB10R17	KEMET, 0.15µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MZ7100MF11R06L2	KEMET, 1µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MK5100KK01R17	KEMET, 10000pF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MY7100MD16R06L2	KEMET, 1µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MK5100MK01R17	KEMET, 10000pF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MR7220MR05R06L2	KEMET, 2.2µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MB5470MB04R17	KEMET, 0.047µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MX6220MB06R17	KEMET, 0.22µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View

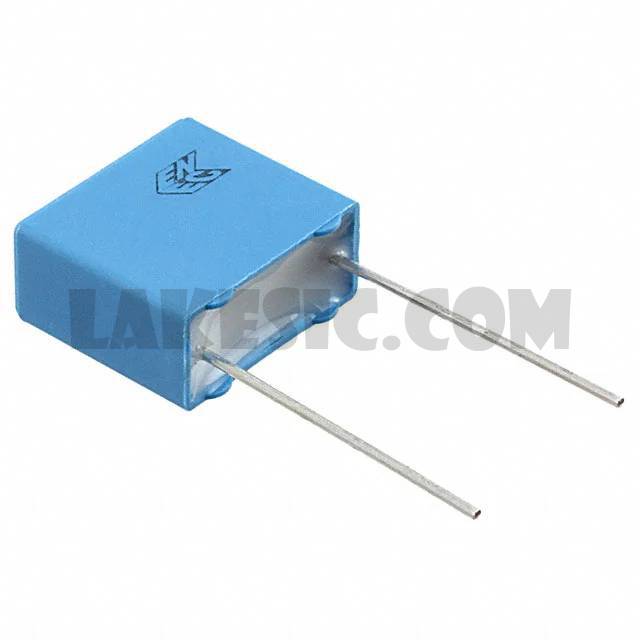

PHE840MA6100MA04R17

Part NumberPHE840MA6100MA04R17
