Categories	Capacitors / Film Capacitors
Datasheet	PHE840MD7100MD20R06L2 Spec
Standard Package	209
Manufacturer	KEMET
Series	PHE840M
Packaging	Bulk
Part Status	Active
Capacitance	1µF
Tolerance	±20%
Voltage Rating - AC	275V
Voltage Rating - DC	760V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.024" L x 0.531" W (26.00mm x 13.50mm)
Height - Seated (Max)	0.906" (23.00mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	EMI, RFI Suppression
Ratings	X2
Features	-

PHE840MZ7220MF14R06L2	KEMET, 2.2µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MD6470KD15R06L2	KEMET, 0.47µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MB5470MB04R17	KEMET, 0.047µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MD6220KD13R06L2	KEMET, 0.22µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MY7100MD16R06L2	KEMET, 1µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MD6220MD13R06L2	KEMET, 0.22µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MA5220MA01R17	KEMET, 0.022µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MB6100MB05R17	KEMET, 0.1µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MK5470MK04R17	KEMET, 0.047µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MB6120MB10R17	KEMET, 0.12µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MF7120MF03R06L2	KEMET, 1.2µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View
PHE840MK5100MK01R17	KEMET, 10000pF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial, PHE840M	View

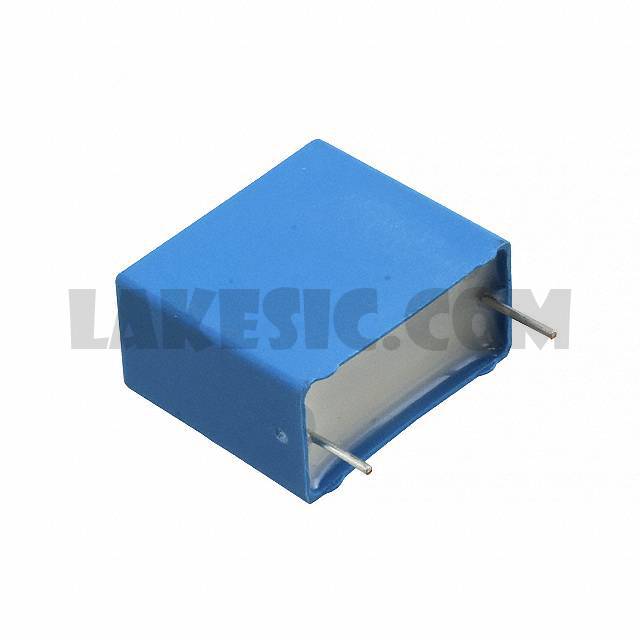

PHE840MD7100MD20R06L2

Part NumberPHE840MD7100MD20R06L2
