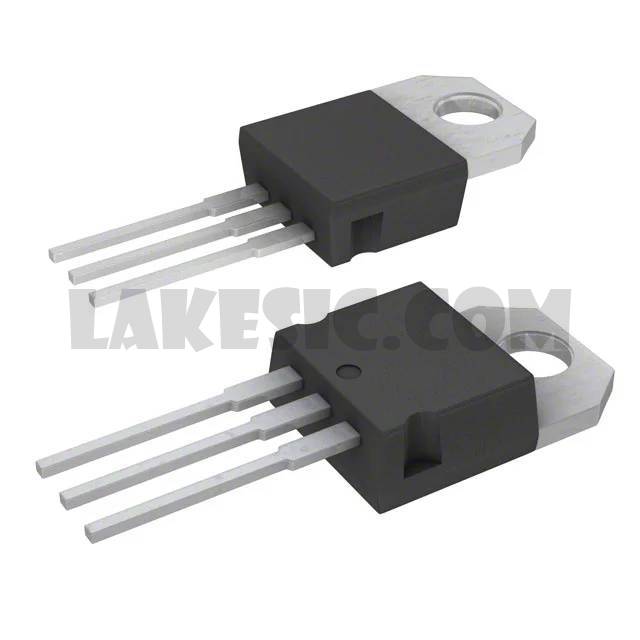

STGP20V60DF

STGP20V60DF

Part NumberSTGP20V60DF

ManufacturerSTMicroelectronics

DescriptionIGBT 600V 40A 167W TO220AB

DatasheetSTGx(x)20V60DF

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Trench Field Stop 600V 40A 167W Through Hole TO-220

To learn about the specification of STGP20V60DF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STGP20V60DF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STGP20V60DF.
We are offering STGP20V60DF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STGP20V60DF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	STGx(x)20V60DF
Standard Package	1000
Manufacturer	STMicroelectronics
Series	-
Packaging	Tube
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	40A
Current - Collector Pulsed (Icm)	80A
Vce(on) (Max) @ Vge, Ic	2.2V @ 15V, 20A
Power - Max	167W
Switching Energy	200µJ (on), 130µJ (off)
Input Type	Standard
Gate Charge	116nC
Td (on/off) @ 25°C	38ns/149ns
Test Condition	400V, 20A, 15V
Reverse Recovery Time (trr)	40ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220
