Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TK100L60W
Standard Package	100
Manufacturer	Toshiba Semiconductor and Storage
Series	DTMOSIV
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	100A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	18mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	3.7V @ 5mA
Gate Charge (Qg) (Max) @ Vgs	360nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	15000pF @ 30V
FET Feature	Super Junction
Power Dissipation (Max)	797W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-3P(L)
Package / Case	TO-3PL

STFU18N65M2	STMicroelectronics, N-Channel 650V 12A (Tc) 25W (Tc) Through Hole TO-220FP, MDmesh™ M2	View
BSS87H6327FTSA1	Infineon Technologies, N-Channel 240V 260mA (Ta) 1W (Ta) Surface Mount PG-SOT89-4-2, SIPMOS®	View
PSMN6R0-30YL,115	Nexperia USA Inc., N-Channel 30V 79A (Tc) 55W (Tc) Surface Mount LFPAK56, Power-SO8,	View
IRFU7440PBF	Infineon Technologies, N-Channel 40V 90A (Tc) 140W (Tc) Through Hole IPAK (TO-251), HEXFET®	View
DMN67D8L-7	Diodes Incorporated, N-Channel 60V 210mA (Ta) 340mW (Ta) Surface Mount SOT-23,	View
FDS2672	ON Semiconductor, N-Channel 200V 3.9A (Ta) 2.5W (Ta) Surface Mount 8-SOIC, UltraFET™	View
STB26N60M2	STMicroelectronics, N-Channel 600V 20A (Tc) 169W (Tc) Surface Mount D2PAK, MDmesh™ M2	View
NX7002BKWX	Nexperia USA Inc., N-Channel 60V 270mA (Ta) 310mW (Ta), 1.67W (Tc) Surface Mount SC-70,	View
FQA70N15	ON Semiconductor, N-Channel 150V 70A (Tc) 330W (Tc) Through Hole TO-3PN, QFET®	View
IRFI740GPBF	Vishay Siliconix, N-Channel 400V 5.4A (Tc) 40W (Tc) Through Hole TO-220-3,	View
IRF3805STRLPBF	Infineon Technologies, N-Channel 55V 75A (Tc) 300W (Tc) Surface Mount D2PAK, HEXFET®	View
IPD60R950C6ATMA1	Infineon Technologies, N-Channel 600V 4.4A (Tc) 37W (Tc) Surface Mount PG-TO252-3, CoolMOS™ C6	View

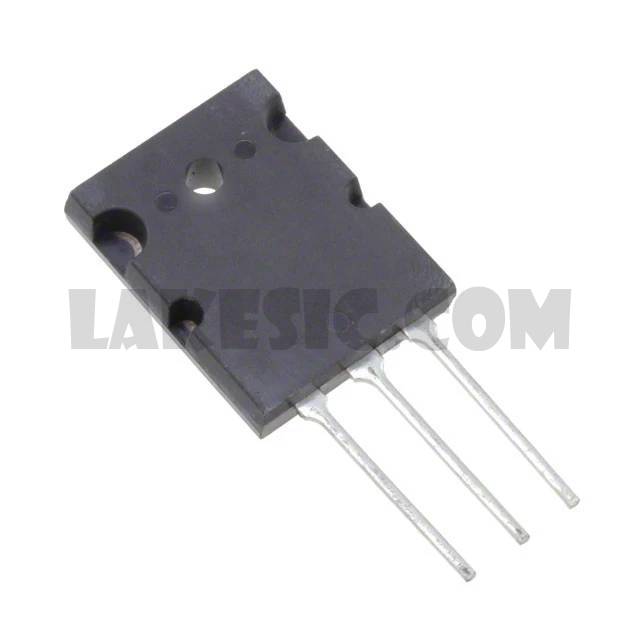

TK100L60W,VQ
