TSM60NB099PW C1G

TSM60NB099PW C1G

Part NumberTSM60NB099PW C1G

ManufacturerTaiwan Semiconductor Corporation

DescriptionMOSFET N-CHANNEL 600V 38A TO247

DatasheetTSM60NB099PW

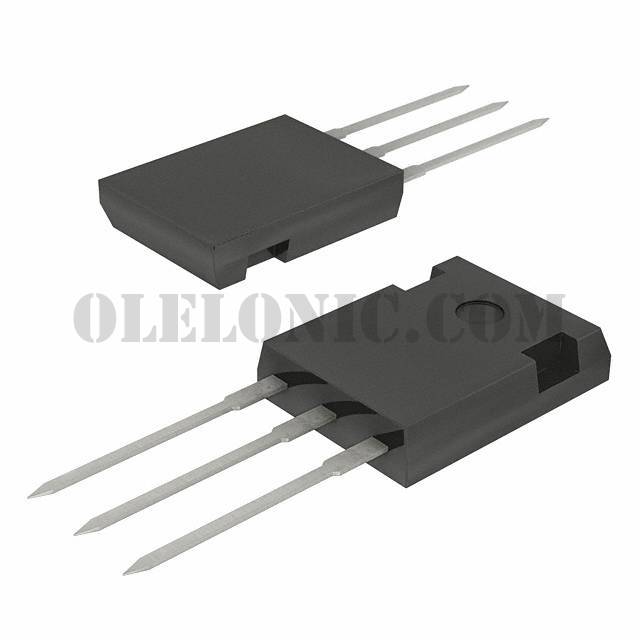

Package / CaseTO-247-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 38A (Tc) 329W (Tc) Through Hole TO-247

To learn about the specification of TSM60NB099PW C1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSM60NB099PW C1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSM60NB099PW C1G.
We are offering TSM60NB099PW C1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSM60NB099PW C1G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TSM60NB099PW
Standard Package	900
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	38A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	99mOhm @ 11.7A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	62nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2587pF @ 100V
FET Feature	-
Power Dissipation (Max)	329W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247
Package / Case	TO-247-3
