Home/Product Catalog/Inductors, Coils, Chokes / Arrays, Signal Transformers/  DRQ125-101-R

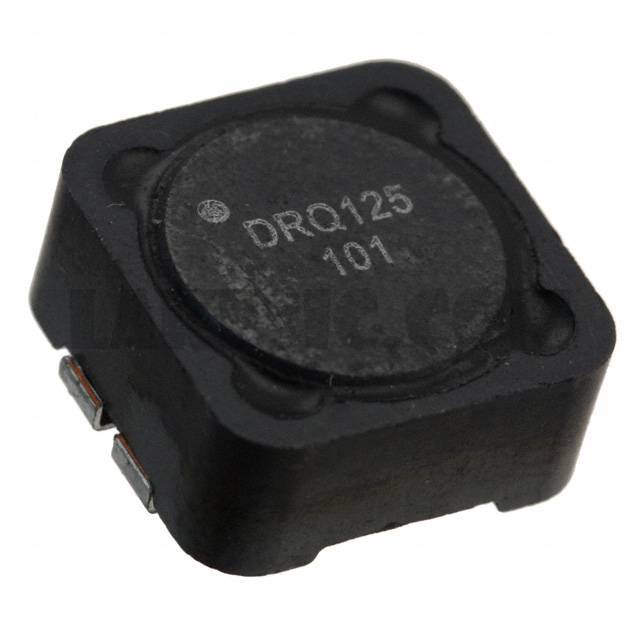

DRQ125-101-R


DRQ125-101-R

Part NumberDRQ125-101-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

DRQ125-101-R - Product Attributes

Categories Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet
Standard Package600
ManufacturerEaton - Electronics Division
SeriesDRQ
PackagingTape & Reel (TR)
Part StatusActive
Number of Coils2
Inductance - Connected In Parallel102.7µH
Inductance - Connected In Series410.8µH
Tolerance±20%
Current Rating - Parallel1.78A
Current Rating - Series892mA
Current Saturation - Parallel2.2A
Current Saturation - Series1.1A
DC Resistance (DCR) - Parallel170mOhm
DC Resistance (DCR) - Series682mOhm
ShieldingShielded
Ratings-
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.492" L x 0.492" W (12.50mm x 12.50mm)
Height0.236" (6.00mm)
