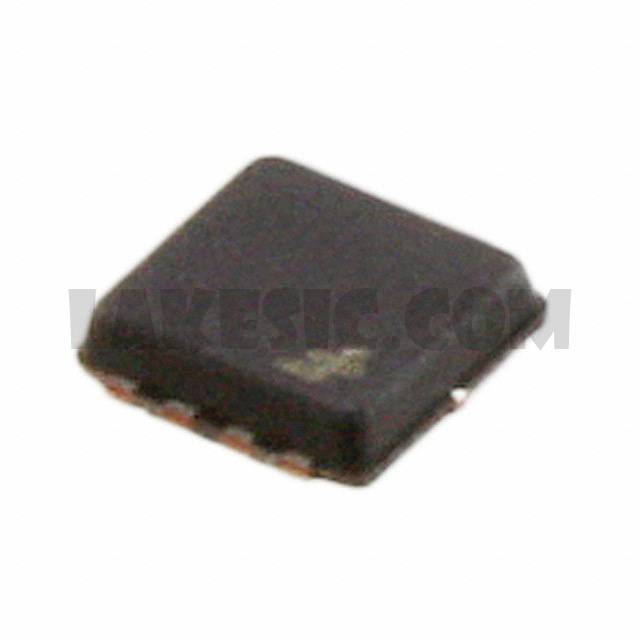

FDMC3612

FDMC3612

Part NumberFDMC3612

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 100V 8-MLP

DatasheetFDMC3612

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 3.3A (Ta), 16A (Tc) 2.3W (Ta), 35W (Tc) Surface Mount 8-MLP (3.3x3.3)

To learn about the specification of FDMC3612, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMC3612 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMC3612.
We are offering FDMC3612 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMC3612 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMC3612
Standard Package	3000
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	3.3A (Ta), 16A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	110mOhm @ 3.3A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	21nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	880pF @ 50V
FET Feature	-
Power Dissipation (Max)	2.3W (Ta), 35W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-MLP (3.3x3.3)
Package / Case	8-PowerWDFN
